products

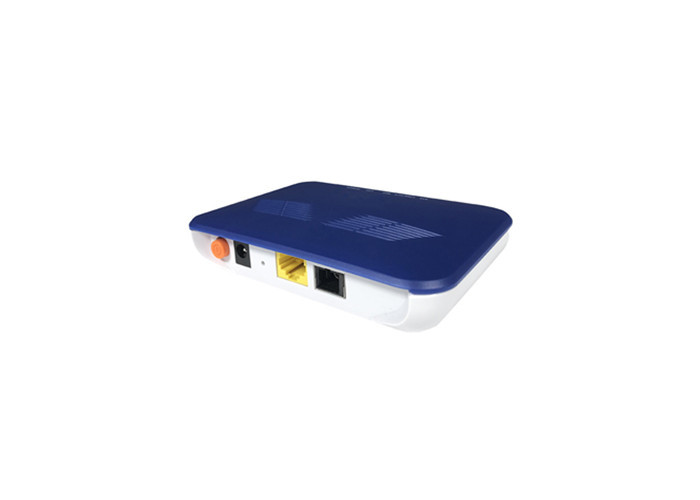

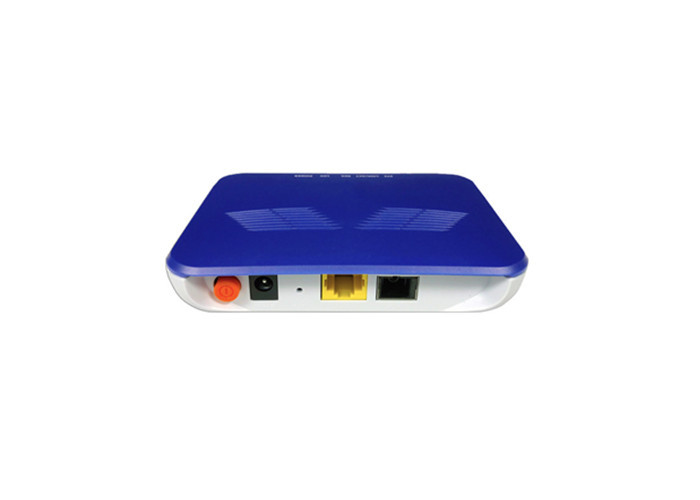

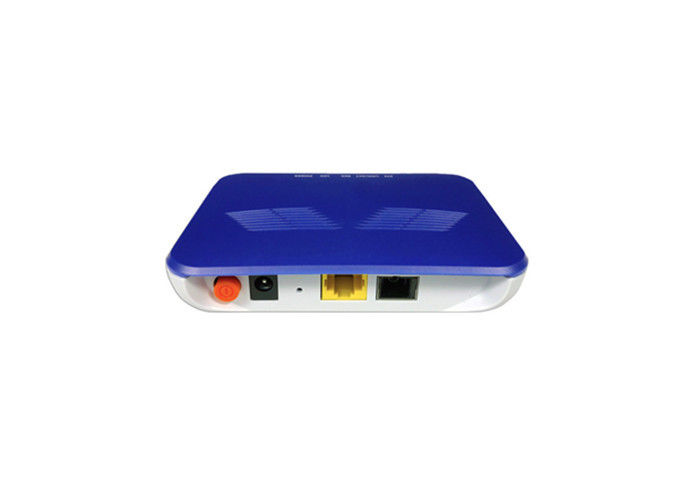

OS-EU01GS 1GE Plastic Shell EPON Optical Network Terminal With External Power Adapter Huawei ZTE Fiberhome compatible

Basic Information
Place of Origin: China
Brand Name: Opti-s
Certification: ROHS/CCC/ISO9001
Model Number: OS-EU01GS
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: 1pcs / box, 50 boxes / carton
Delivery Time: 5-8 work days after payment
Payment Terms: T/T;Paypal
Contact Now
Detail Information
Chip: ZTE Power: 12V/0.5A DC
Management: Web

Product Description







Plastic ZTE chipset 1 single Pon Port GE EPON ONU Moden apply in Broadband network







    OS-EU01GS is a new EPON ONU production of Our Company which passive optical network terminal series. It provides one 10/100/1000Mbps base-T interface, one optical interface, and it is very impact. Suitable for home and small business users, can meet the FTTH high-speed data transmission of the application.





Key Features



  • It takes the PTMP (point to multipoint)network topology, effectively collects and converges scattered Ethernet services, and provides the 10/100/1000M Ethernet standard RJ45 interface, smoothly interconnects with existing networks.
  • The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the 1Gbps bandwidth reasonably, guaranteeing a reliable QoS.
  • Supports IGMP multicast, effective use of broadband;
  • Supports multicast VLAN;
  • Supports China Telecom CTC protocol;
  • Full management through an Operation Administration Maintenance (OAM) protocol based on IEEE802.3ah, including configuration, alarm, performance monitoring, fault isolation and security management, etc. It supports remote management through OLT and local console management as well.
  • Supports FEC and DBA;
  • Supports IEEE802.1Q VLAN protocol;
  • Supports IEEE 802.1p protocol;
  • Supports remote loopback and network status diagnosis;
  • Supports flow statistics;
  • Supports storm control;
  • Support NAT;
  • Support PPPOE;
  • Support DHCP Server Client;
  • Support Route;



Technical Parameter



Module OS-EU01GS

User nterface 1 10/100/1000M RJ45 port.

  Transmission speed :upstream/downstream symmetrical 1Gbps
  Network coverage radius: 20KM
PON Optical receive sensitivity:≥-27dBm
  Continuous light power: 0dBm~+4dBm
  Security: SFU authentication mechanism
  Compliant with IEEE 802.3ah
  YD/T 1475-2006
  IEEE 802.1D, Spanning Tree
Protocol IEEE 802.1Q, VLAN
  IEEE 802.1w, RSTP

  IEEE 802.3ad (LACP)
  Ethernet–II, Ethernet-SNAP
  Support NAT

Route Support PPPOE

Support Server Client

  Support Route

  Port-based VLAN

VLAN GVRP
  IEEE 802.1Q VLAN
  Backpressure flow control(half-duplex)
  IEEE 802.3x flow control(full-duplex)
QOS Prevent Head Of Line

IEEE 802.1p, CoS

  WR,SP and FIFO queue scheduling algorithm
  Port rate limit
  IEEE 802.1x,access control based upon Port; support local and remote RADIUS.
Safety CHAP,EAP certification;
  Storm control, port protection,
  Various management modes such as Web, TELNET
Management

Debug function.

Size 105mm(L) ×85mm(W) ×25mm(H)

  Operating temperature:0℃~60℃;
Environment Operating humidity:10%~85% non-condensing

Storage temperature:-40℃~80℃;

  Storage humidity:5%~95% non-condensing
Power supply 110~240VAC 12V/0.5A DC
power interface size:2.1mm/5.5mm

Power Consumption 2.5W



OS-EU01GS 1GE Plastic Shell EPON Optical Network Terminal With External Power Adapter Huawei ZTE Fiberhome compatible
