Detail Information

Chip:	Contina	Uplink:	10GE Uplink Port
Management:	Web Management

Product Description

,Product overview

OS-EP04/08W is highly integrated, medium-capacity EPON OLT for operators, ISPS, enterprises and park applications. The product follows the IEEE802.3ah technical standard. The product has good openness, strong compatibility, high reliability, and complete software functions. It can be widely used in operators' FTTH access, VPN, government and enterprise park access, campus network access, ETC.

OS-EP04/08W is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONU, which can save a lot of costs for operators.

,Main Feature

Rich Layer 2/3 switching features and Flexible management methods
Support multiple link redundancy protocols such as Flex-Link/STP/RSTP/MSTP/ERPS/LACP
Support RIP,OSPF,BGP,ISIS and IPV6
Safe DDOS and virus attack protection
Support Power redundancy backup,power pluggable(OS-EP08W)
Support power failure alarm
Type C management interface (OS-EP08W)

3,Hardware Feature

Item	OS-EP04W	OS-EP08W
Exchange capacity	96Gbps	104Gbps
Packet forwarding rate	71.424Mpps	77.376Mpps
Memory and storage	memory:512MB, storage:32MB	memory:512MB, storage:32MB
Management port	Console	Console, Type C
Port	4GEPON Port,410/100/1000M Base-T,41000M Base-X SFP/410GE SFP+	8GEPON Port,410/100/1000M Base-T,41000M Base-X SFP/410GE SFP+
Weight	≤3.5kg	≤5kg
Fan	Fixed fans (two fans)	Fixed fans(three fans)
Power	AC: 100～240V ; 47/63Hz； DC: 36V～75V；
Power consumption	≤38W	≤49W
Dimensions (Width * height * depth)	440mm44mm200mm	440mm44mm260mm
Environment friendly	China ROHS; EEE
Environment temperature	Working Temperature:-10℃～55℃ Storge temperature:-40℃～70℃
Environment humidity	Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing)

4,Software Feature

Item	OS-EP04W	OS-EP08W
PON	Comply with IEEE 802.3ah EPON standard 20KM transmission distance 1:64 Max splitting ratio
VLAN	Support 4K VLAN Support VLAN based on port, MAC and protocol Support dual Tag VLAN, port-based static QINQ and flexible QINQ
MAC	16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit
Ring network protocol	Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection
Port control	Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding
Port aggregation	Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports
Mirroring	Support port mirroring Support stream mirroring
ACL	Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, TOS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
QoS	Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR
Safety	Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius& TACA CS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection
Layer 3	Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP
System management	CLI,Telnet,WEB,SNMP V1/V2/V3,SSH2.0 Support FTP, TFTP file upload and download Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute

5,Purchasing Information

Product name	Product description
OS-EP04W	4PON port, 410GE/GE SFP +4GE RJ45 uplink port, standard for AC Power; Dual power with optional
OS-EP08W	8PON port, 410GE/GE SFP +4GE RJ45 uplink port, standard for AC Power; Dual power with optional

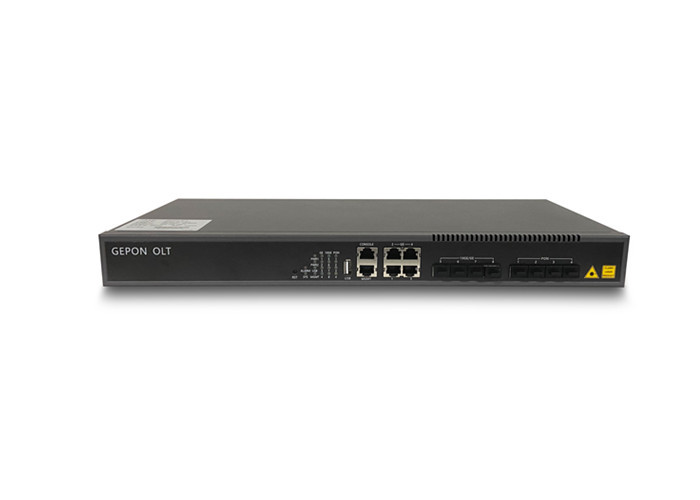

GEPON OLT 4PON,4*PON,4*10GE SFP port and 4*GE RJ45 port,New sulution,10GE uplink port,Strong stability and compatibility

Place of Origin:	China
Brand Name:	Opti-S
Certification:	CCC,ISO-90001
Model Number:	OS-EP04W

Minimum Order Quantity:	1PCS
Price:	negotiable
Packaging Details:	1 pcs of box; 5 pcs of carton
Payment Terms:	T/T
