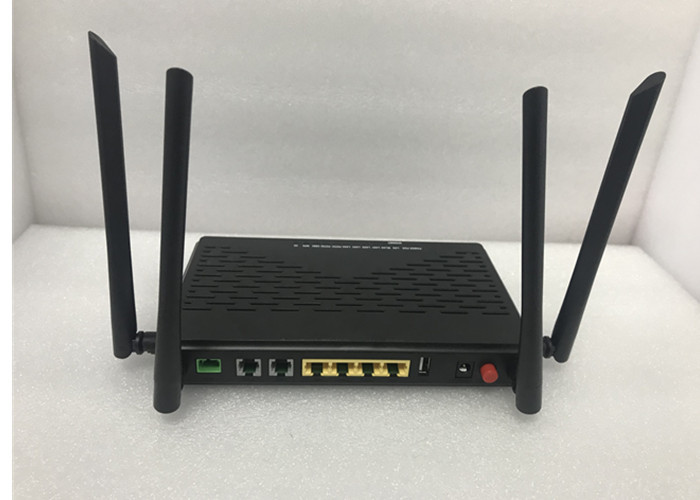

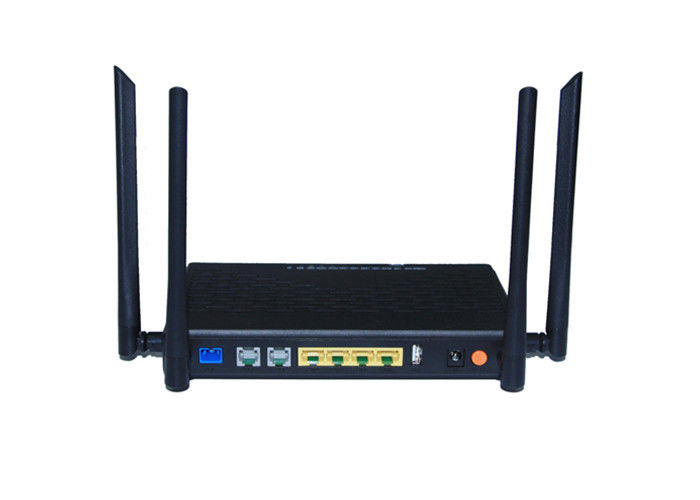

Lightweight GPON ONT Durable Plastic Material DC 12V 4GE+2POTS+WIFi(2.4G&5G) dual-band Realtek chip

Basic Information
Place of Origin: China
Brand Name: Opti-S
Certification: CCC/ISO9001
Model Number: OS-GU4G2VW(D)
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 5-30 work days
Payment Terms: T/T
Detail Information
WIFI: Dual-band 2.4G&5G Management: Web/Telnet/CLI Management
Power: 12V 1.5A

Product Description

GPON ONT /Dual band HGU(4GE+2POTS+WIFI 2.4G&5G+1USB)

Product Overview:

    OS-GU04G2VW(D) is designed and manufactured by company, a next-generation Gigabit Passive Optical Network (GPON) terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences, and WIFI (2.4G & 5G).



Product Descriptions:

►Complies with ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4 provides comprehensive GPON network compatibility

► Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
► Fiber access and gigabit port provide incredibly fast transfer speeds

► Supports802.11AC

► Supports OMCI (ONT Management Control Interface) remote management



Product Specification:

Item

OS-GU04G2VW(D)

GPON Standards ITU-T G.984.1, G.984.2, G.984.3, G.984.4
Chipset

RTL9607+8192+8814

ZX279128+ MTK 7603 + MTK7612

Interface

1 SC/UPC PON Port

4 10/100/1000Mbps RJ45 Ports
2 POTS Port

1 USB

WIFI (2.4G & 5G)

Data Rates & Wavelength Upstream:1.244Gbps, 1310nm
Downstream:2.488Gbps, 1490nm
Distance 0~ 20Km Max
External Power Supply DC 12V/2A
Dimensions (Length * Width * Height) 200mm×140mm×40mm
Weight (Full-Loaded) ≤0.5kg
Environmental Requirements

Working temperature: 0°C~40°C

Storage temperature: -40°C~70°C

Relative humidity: 10%~90%, non-condensing





Product Interface:

Item

OS-GU04G2VW(D)

  • Interface

4x 10/100/1000BASE-T RJ45

Auto negotiation

Auto MDI/MDIX



GPON Speed

Downstream:2.488Gbps

Upstream:1.244Gbps

Connector SC/UPC, pigtail, G.652 Single Mode Fiber
Power level

Downstream:

– Wavelength:1490nm

– Sensitivity:-27dBm

– Saturation:-9dBm

Upstream:

– Wavelength:1310nm

– TX power:0.5 ~ 5dBm

– RMS: 0.5nm

WIFI Standard

Through Put (11n HT40): ≥140Mbps

TX Power (11ac MCS9): 17+2dBm

EVM (11AC MCS9) : <-32dB

Through Put (11ac HT80): ≥550Mbps

Antenna

2.4G antenna :4dBi

5G antenna :4.5dBi

VoIP Connector 2 * RJ11
Ringing 65V RMS ringing voltage
USB Max 1A for each port




Product Features:

Item

OS-GU04G2VW(D)

Quality of Service





Service Flow Classification based on VLAN
Schedule rules Support SP/WRR
Upstream Priority Label Support 802.1D User Priority
Rate Limit and Traffic shaping
Congestion Control Support Tail-Drop

Advanced Features



Upstream and Downstream FEC
Dynamic Bandwidth Allocation (DBA) support NSR/SR
Up to 7 T-CONTs and 4095 GEM Ports
Optical power detection, Dying Gasp
Terminal Silent mechanism
802.3az EEE Energy Conservation

VLAN



802.1Q tag VLAN
VLAN transparent mode/VLAN translation mode/VLAN trunk mode
Authentication based on SN and Password
VLAN Auto Detect

Security



AES Encryption
Packet Filter based on VLAN

Management



Managed by Web, OMCI and Telnet,
Specified the management IP,
Reset to Factory default by Reset button or Web UI,
Real-time statistics, Optical Diagnostic

IGMP



IGMP v2/v3
IGMP Snooping/Proxy
