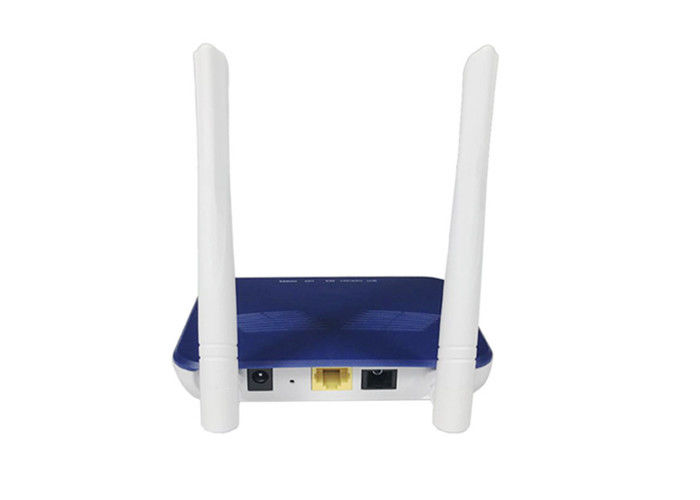

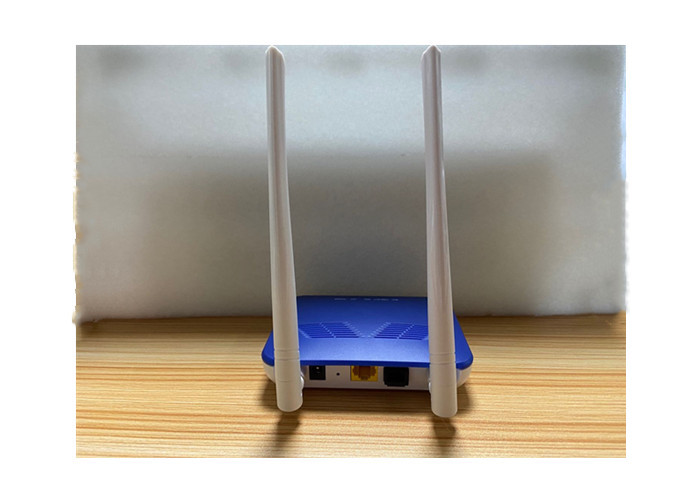

OS-EU01GW EPON ONU 1GE+WIFI for CLI,web management for chipset realtek DC12V0.5A

Basic Information
Place of Origin: China
Brand Name: Opti-S
Certification: CCC/RHOS/ISP9001
Model Number: OS-EU01GW
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 5-8 work days after payment
Payment Terms: T/T;Paypal
Contact Now
Detail Information
Optical Wavelength: TX 1310nm, RX 1490nm DC Power Supply: DC 12V/1A, External AC-DC Power Adaptor
Port: 1*10/100/1000base-T,1*WIFI

Product Description





     EPON ONT is designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators. The box is based on the mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R). It is highly reliable and easy to maintain, with guaranteed QOS for different service. And It is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.


Special features

l Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.

l Support rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.

l Support fiber transceiver diagnostic monitoring, fiber transmitter disable remotely.

l Fully compatibility with OLT based on Broadcom chipset etc.

l Support 802.11n WiFi (2T2R) function.

l Support NAT, Firewall function.

l Support IPv4 and IPv6 dual stack

lThe WAN port supports bridge, router and bridge/router mixed mode.


Technical parameters

Technical items Descriptions
Chipsets RTL
Optical interface

1 EPON interface, SC single-mode/single-fiber,

Downstream rate 1.25Gbps, Upstream rate 1.25Gbps

Optical Wavelength Tx 1310nm, Rx 1490nm
Optical interface SC/PC
RX sensitivity < -27dBm @ 1490nm

Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R

one internal antenna and one external antenna

WLAN throughput

1000 Mbps @ 40users, 1518bytes, no-encryption

107Mbps @ 40users, 512bytes, encryption

LAN interface 1*10/100/1000Mbps
Router throughput Upstream: >390Mbps @ 1518bytes, Downstream: >390Mbps @ 1522bytes
DC power supply DC 12V/1A, external AC-DC power adaptor
Button RST, Power, WiFi, WPS, Pair
Power consumption ≤ 10W
Operating condition Operating temp: 0 ~ +45,Operating humidity: 10~90% (non-condensed)
Storing condition Storing temp: -30 ~ +60,Storing humidity:10~90%(non-condensed)
Dimension 137mm*117mm*30mm(length*width*height)
Net weight 0.4Kg



Data Service Functions

1) Full speed non-blocking switching.

2) 2048 MAC address table.

3) 64 full range 4095 VLAN ID

4) Support VLAN QinQ, transparent, tag, translation, trunk, etc.

5) Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

6) Support auto polarity detection of Ethernet ports (AUTO MDIX).

7) Integrated IEEE802.1p QoS with four level priority queues.

8) Support IPv4 IGMP snooping and IPv6 MLD snooping.

9) Support bridging, router and bridging/router mixed mode.


WiFi service

1) Integrated 802.11b/g/n, 300Mbps, 2T2R.

2) Support 128 connections.

3) Support WEP and WPA/WPA2 security protocols.
