| Place of Origin: | China |
|---|---|
| Brand Name: | Opti-s |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | OS-SW24PC |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | 520*425*340mm(4 pcs/carton) |
| Delivery Time: | 5-8 work days after payment |
| Payment Terms: | T/T;Paypal |
| Port: | 24*GE POE+4*GE SFP | Managemen: | NMS/CLI Management |
|---|---|---|---|
| Chip: | Realtek |

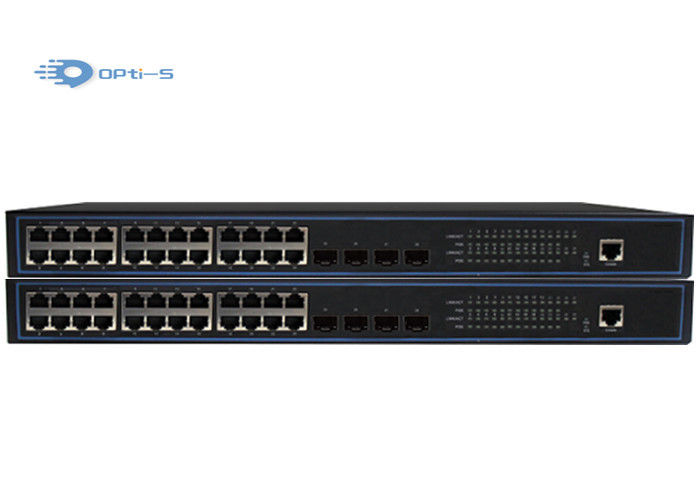

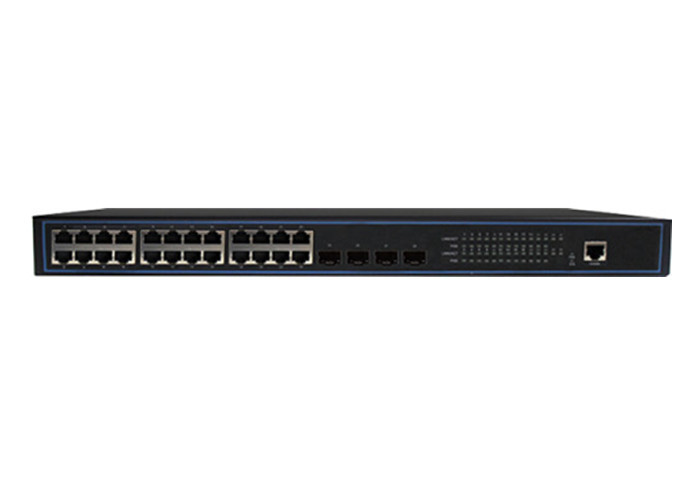

OS-SW24PC is developed by Company as a new generation carrier access Ethernet POE devices,
meeting customers’ demand on cost-effective gigabit access. Targeting various application scenarios (such as WLAN, WIFI, FTTH, security and protection monitoring), It adopts simple and convenient installation and maintenance so as to help customers to ease the pressure on network planning,construction and
maintenance. It is not only satisfy IEEE standard of 802.3af and 802.3at, but also is compatible with the powered devices which do not meet the IEEE standard of 802.3af and 802.3at. The maximum power consumption of each port is 32W and the whole power consumption can reach 400W.
Product Specification
| Item | OS-SW24PC |
| Port Capacity | 56Gbps |
| Forwarding Capacity | 41.7Mpps |
| Memory and Storage | 128MB DDR and 8MB FLASH |
| POE Feature | meet 802.3af and 802.3at; maximum power consumption of each port is 32W |
| Power Consumption |
Full-load consumption≤30W Idle-power consumption≤20W |
| Dimensions (Width x Depth x Height) | 440*330*44mm |
| Weight (Full-Loaded) | ≤3KG |
| Anti-thunder | service port anti-thunder 4KV |
| Environmental Requirements |
Working temperature: -10°C～50°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing |
Product Feature:
| Item | OS-SW24PC | |
| L2 Features | MAC |
8K MAC MAC Black Hole Port MAC Limit |
| VLAN |
4K VLAN entries QinQ PVLAN to realize port isolation and saving public-vlan resources GVRP |
|
| Spanning Tree |
STP/RSTP/MSTP Remote loop detecting |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring |
|
|
Security Features |
User’s Security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binding to the port and MAC address filtering IEEE 802.1x and AAA/Radius authentication |
| Device Security |
Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network Maintenance |
Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port DHCP Option82 and PPPoE+ upload user’s physical location |
|
| Service Features | ACL |
270 standard and extended ACLs Time Range ACL Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc packet filtration of L2～L7 deep to 80 bytes of IP packet head |
| QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow Packet mirror and redirection of interface and self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark Super queue scheduler based on port or self-defined flow. Each port flow supports 8 priority queues and scheduler of SP, WRR, SP+WRR, etc. |
|
| Multicast |
IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy |
|
| Reliability | Loop Protection |
EAPSERPSPVST and GERP (recover-time <50ms) Loopback-detection |
| Link Protection |
FlexLink (recover-time <50ms) RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms) |
|
| Device Protection | Double fault-tolerant backup of host program and configuration files | |
| Maintenance | Network Maintenance |
Port real-time, utilization and transmit/receive statistic based on Telnet LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
| Device Management |
CLI, Console port, Telnet SNMPv1/v2/v3 RMON (Remote Monitoring)1,2,3,9 groups MIB NTP GN.LinkⅡ Server NGBNView |
|
