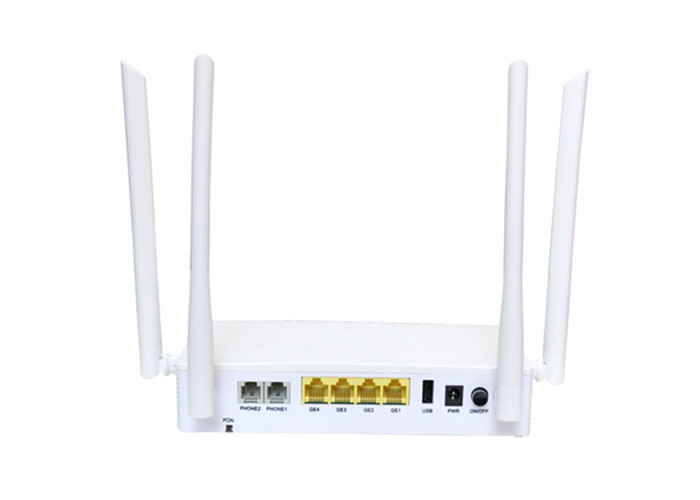

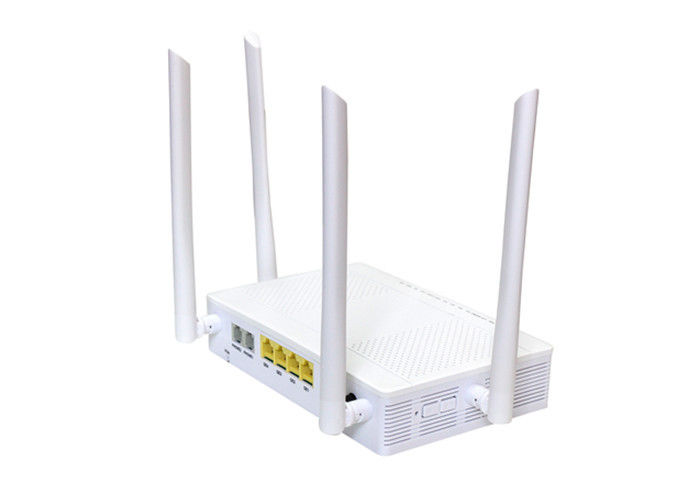

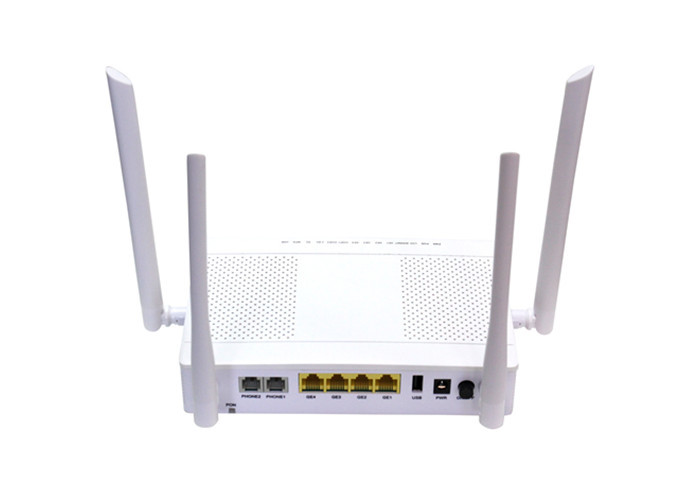

OS-XU04G2VW(AC) XPON ONT 4GE+2POTS+WIFI(2.4G&5G) Web/Telnet/CLI management with Realtek solution

Basic Information
Place of Origin: China
Brand Name: Opti-S
Certification: CCC/ISO9001
Model Number: OS-XU04G2VW(AC)
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: T/T
Contact Now
Detail Information
Main Chip: Realtek 9607C Port: 1*XPON(GPON/EPON)port,4*GE,2*POTS,1*WIFI(2.4G&5G)
Power: DC12V,1.5A

Product Description

1, Product Description


    The 4GE+2POTS+WIFI(AC) is a series of ITU-T G.984.x based and IEEE802.3ah based XPON HYBRID ONU designed for home and office users. Its uplink interface is a 1*SC/APC or SC/UPC G/EPON port that supports 2.5G downstream and 1.25G upstream bandwidth for GPON and supports 1.25G downstream and 1.25G upstream bandwidth for GEPON. It can access GEPON / GPON OLTs.It offers 4 Gigabit Ethernet ports for LAN. The ONU also offers 2* FXS ports and a 1200Mbps Wi-Fi Router, providing high quality voice and excellent Wi-Fi experience for subscribers. Built for FTTx deployments, it supports powerful home gateway/CPE features, such as Multiple WAN, QoS, VLAN, Firewall, ACL, etc. It is a high-end Internet Data, Voice and Wi-Fi all-in-one GEPON / GPON ONU for ISPs deploying Triple Play networks over single fiber.


2. Features:


1) Both ITU-T G.984.x GPON and IEEE802.3ah GEPON standard

2) IEEE802.11ac 867Mbps + IEEE802.11n 300Mbps Wi-Fi Router for Excellent Wi-Fi experiences

3) Offers 1* SC/APC or SC/UPC GPON / GEPON WAN port, supports 1.25G upstream and 2.5G / 1.25G downstream

4) Offers 4 * Gigabit Ethernet LAN ports, wire-speed data transmission

5) Offers 2*FXS ports for high quality Voice over IP deployments.

6) AES 128-bit encrypted and key switching, enhancing transmission security

7) Layer 2 Switching, support 802.1Q VLAN, 802.1P QoS, Bandwidth Control, Spanning Tree, etc

8) Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc

9) Port Binding, different LAN ports can be assigned with different WAN services

10) Max 1:128 Fiber ration, max transmission distance can reach 20km

11) Max 1:64 Fiber ratio for GEPON, max transmission distance can reach 20km

12) Support FEC (Forward Error Correction), ensures high reliable and precise data transmission

13) Support Dynamic Bandwidth Allocation (DBA), Smarter bandwidth assignment and usage.

14) Support OMCI and TR069 Management, manage subscribers remotely.

15) Supports IPv4 and IPv6, highly applicable in both IP type based networks.




3,Technical parameters


Standards IEEE 802.3,IEEE 802.3u, IEEE802.3ab. IEEE 802.3x, IEEE802.1Q, IEEE802.1P, IEEE802.1D, IEEE802.11b/g/n, IEEE802.11ac, ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
Topology Star Topology
Uplink port 1*GEPON / GPON WAN port, SC/UPC Connectors or SC/APC connectors optional
Transmission distance Up to 20Km
Downlink ports 4*10/100/1000Base-Tx Gigabit Ethernet ports
VoIP Ports 2*FXS ports
Wi-Fi IEEE802.11b/g/n 300Mbps + IEEE802.11ac 867Mbps Wi-Fi
LED Indicators Power, PON, LOS ,Internet, VoIP1, VoIP2, GE1-GE4, Wi-Fi, WPS
Ethernet Cable

10Base-Tx: UTP category 3, 4,5, up to 100m

100Base-Tx: UTP category 5, up to 100m

1000Base-Tx: UTP category 5, 5E, 6, up to 100m

Fiber Cable 8.3μm, 8.7μm, 9μm and 10μm single mode fiber cable
Power Supply AC110-240V Input, DC 12V, 1A-1.5A output External Power Supply, 4KV Surge Protection


Temperature & Humidity

  Temperature Humidity
Working 0 to 45℃ 10% - 90%
Standby -40 to 70℃ 5% - 90% RH
