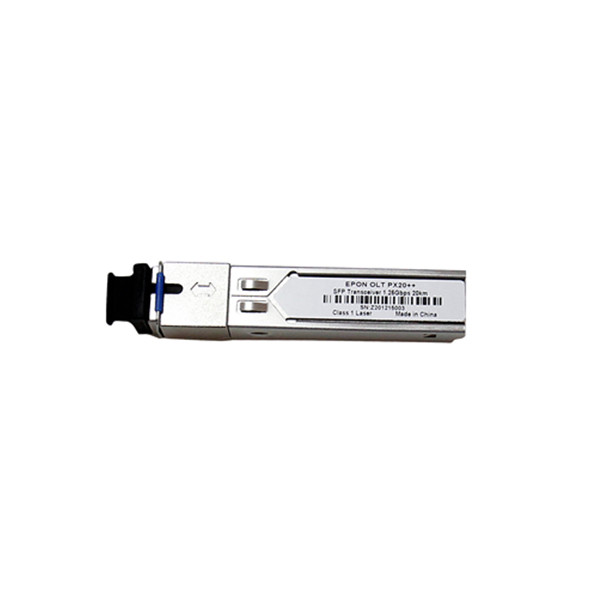

Name: EPON OLT PX20+++ PON Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
Brand: Opti-Solution
SKU: EPON OLT PX20+++
Availability: InStock

Detail Information

Launched Power:	7-8dBm	Distance:	Pon Module For SFP Is 20km
Standard:	Compatible IEEE 802.3ah

Product Description

Product Features

Compatible IEEE 802.3ah 1000BASE-PX20+++ GEPON application
Applied to EPON OLT for a Single Fiber Bi-directional EPON System
SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472
Burst Digital Receiving Signal Strength Indication (RSSI)
Single 3.3V power supply
Operation case temperature -10~70°C for commercial
RoHS-6 compliance

Applications:

Data services
Voice services
Video services
Monitoring service
FTTH

Absolute Maximum Ratings

Parameter	Unit	Min.	Typical	Max.
Power Supply	V	0		4.2
Storage Ambient Temperature	°C	-40		85
Operating Case Temperature	°C	-40		85
Operating Relative Humidity	%	5		95
Receiver Damaged Threshold	dBm	0

Operating Condition

Parameter	Unit	Min.	Typical	Max.
Power Supply	V	3.1	3.3	3.5
Operating Case Temp for C-temp	°C	-10		70
Operating Relative Humidity	%	5		95
Data Rate(TX/RX)	Gbit/s		1.25

Optical Characteristics

Parameter	Unit	Min.	Typ.	Max.
TX Central Wavelength	nm	1480		1500
Spectral Width (-20dB)	nm			1
SMSR	dB	30
Mean Launched Power	dBm	7		9
Mean Launched Power (TX Off)	dBm			-39
Extinction Ratio(Note 1)	dB	9
TX Total Jitter	UI			0.43
Rise/Fall Time (20%-80%)	ps			260
RIN₁₅OMA	dB/Hz			-115
Optical Return Loss Tolerance	dB			-12
Transmitter and dispersion Penalty(20km G.652)	dB			2.3
TX Optical Eye Mask	Compliant With IEEE Std 802.3ah™-2004
Receive Wavelength	nm	1260		1360
Sensitivity (Note 2)	dBm			-33
Overload	dBm	-6
Dynamic Rang	dB	25
Receiver Threshold Settling Time	ns			250
RX Dynamic Range(Note 3)	dBm	-30		-6
LOS-Deassert	dBm			-34
LOS-Assert	dBm	-45
SD Hysteresis	dB	0.5		6
Receiver Reflectance	dB			-12

Place of Origin:	China
Brand Name:	Opti-S
Certification:	CCC;ISO90001
Model Number:	EPON OLT PX20+++

Minimum Order Quantity:	1PCS
Price:	negotiable
Payment Terms:	T/T
